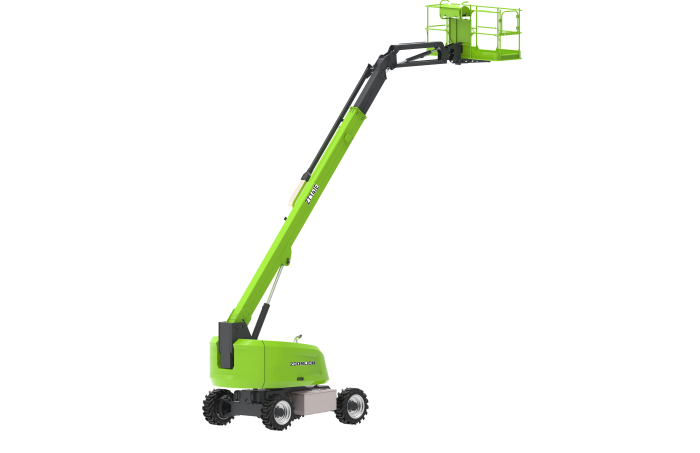

ZT14JE
| Work Height | 16.6m |
|---|---|
| Platform Height | 14.6m |
| Horizontal Outreach | 12.7m |
| A – Stowed Length | 9.6m |
| B – Stowed Width | 2.28m |
| C – Stowed Height | 2.52m |
| D – Platform Length | 2.44m |
| E – Platform Width | 0.91m |
| F – Wheelbase | 2.36m |
| Tread | 2.28m |
| G – Ground Clearance | 0.36m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 5.5km/h |
| Gradeability | 45%(24°) |
| Turning Radius (Inside) | 2.06m |
| Turning Radius (Outside) | 4.78m |
| Turntable Swing | 360°continuous |
| Platform Rotation | ±90° |
| Tail Swing | 0.9m |
| Jib Rotation | 130°（﹣60°~75°） |
| Max. Wind Speed | 12.5m/s |
| Charger | 48V/40A(Lead Acid) |
| Drive Motor | 3.3KW |
| Lifting Motor | 10KW |
| Auxiliary Power | 12V DC |
| Hydraulic Tank | 75L |
| Type | Foam-filled tire |
| Gross | 8500kg |
| Work Height | 54ft 6in |
| Platform Height | 47ft 11in |
| Horizontal Outreach | 41ft 8in |
| A – Stowed Length | 31ft 6in |
| B – Stowed Width | 7ft 6in |
| C – Stowed Height | 8ft 3in |
| D – Platform Length | 8ft |
| E – Platform Width | 3ft |
| F – Wheelbase | 7ft 9in |
| Tread | 7ft 6in |
| G – Ground Clearance | 1ft 2in |
| Platform Capacity (Unrestricted/Restricted) | 660/1000lb |
| Drive Speed (Stowed) | 3.42mph |
| Turning Radius (Inside) | 6ft 9in |
| Turning Radius (Outside) | 15ft 8in |
| Turntable Swing | 360°continuous360°continuous |
| Tail Swing | 2ft 11in |
| Max. Wind Speed | 28mph |
| Hydraulic Tank | 19 gal |
| Gross | 18739lb |
