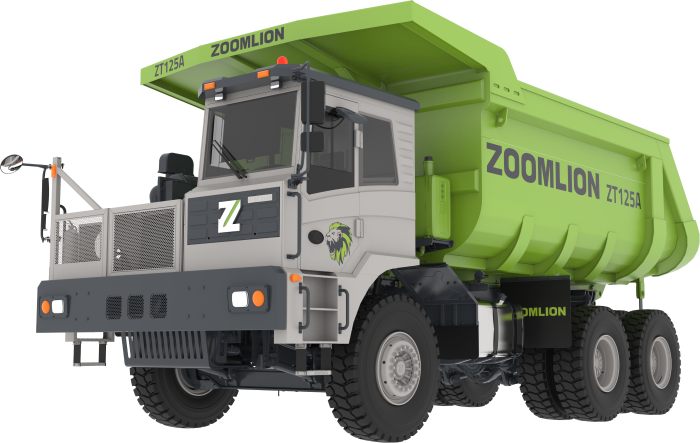

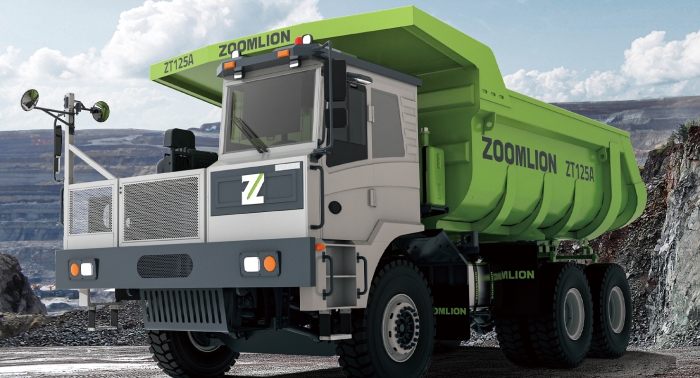

ZT125A
| Main Parameters | Unit Value |
|---|---|
| Curb weight | t 34.5 |
| Rated payload | t 85 |
| Max. speed | km/h 40(MT) / 40(AT) |
| Max. gradeability | % 32 |
| Min. turning radius | m 13 |
| Axle payload | t 35+45+45 |
| Steering system | / Fully hydraulic |
| Tires | / 16.00R25 |
| Engine model | / YC6K580-GT30 |
| Emission standard | / China Non-road Stage III |
| Engine displacement | L 12.939 |
| Rated power | kW/rpm 426 |
| Max. torque | N·m/rpm 2600 N · m/1100~1900 r/min |
| Transmission model (MT) | / Z8S265A |
| Transmission model (AT) | / FC 6A250 |
| Capacity | m³ 38(Struck) 44(Heaped 2:1) |
