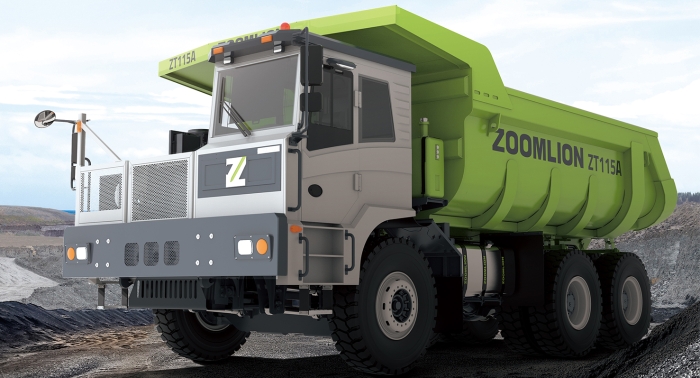

ZT115A
| Main Parameters | Unit Value |
|---|---|
| Curb weight | t 34 |
| Rated payload | t 75 |
| Max. speed | km/h 41(MT) / 45.6(AT) |
| Max. gradeability | % 33 |
| Min. turning radius | m 12 |
| Capacity (struck) | m³ 36 |
| Capacity (heaped 2:1) | m³ 43 |
| Tires | / 16.00R25 |
| Engine model | / YC6K580-GT30 |
| Engine displacement | L 12.939 |
| Emission standard | / China Non-road Stage III |
| Rated power | kW 426 |
| Max. torque | N · m/rpm 2500 N · m/1100~1500 r/min |
| Transmission (MT) | / ZOOMLION Z8S265A Transmission +FAST EATON clutch |
| Transmission (AT) | / FC6A250 |
| Steering system | / Fully hydraulic |
