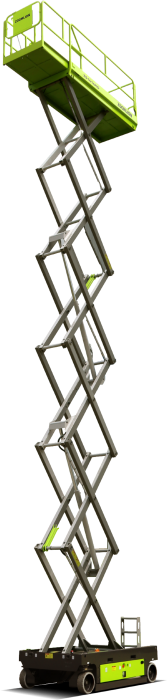

ZS1414HA
| Work Height | 15.7m/10.5m |
|---|---|
| A – Platform Height-Elevated | 13.7m/8.5m |
| B – Platform Height-Stowed | 1.54m |
| C – Platform Length | 2.67m |
| D – Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E Overall Height (Rails Up) | 2.68m |
| Overall Height (Rails Down) | 2.0m |
| F Overall Length | 2.87m |
| G Overall Width | 1.4m |
| H Wheelbase | 2.22m |
| I Ground Clearance (Stowed) | 0.11m |
| J Ground Clearance (Raised) | 0.02m |
| Platform Capacity | 260kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | 2/1 |
| Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 2.6m |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | – |
| Up/Down Time | 88/60s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Rear Wheels |
| Tire | ∅381mmX127mm |
| Battery | 4×6V/190Ah (TIANPENG) |
| Charger | 24V/30A |
| Charger (Option) | – |
| Gross | 3310kg |
| Work Height | 51ft 6in/34ft 6in |
| A – Platform Height-Elevated | 44ft 11in/27ft 11in |
| B – Platform Height-Stowed | 5ft 1in |
| C – Platform Length | 8ft 9in |
| D – Platform Width | 3ft 8in |
| Platform Extension | 3ft |
| E Overall Height (Rails Up) | 8ft 10in |
| Overall Height (Rails Down) | 6ft 7in |
| F Overall Length | 9ft 5in |
| G Overall Width | 4ft 7in |
| H Wheelbase | 7ft 3in |
| I Ground Clearance (Stowed) | 4.5in |
| J Ground Clearance (Raised) | 0.75in |
| Platform Capacity | 570lb |
| Capacity on Deck Extension | 250lb |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 4in |
| Turning Radius (Outside) | 8ft 6in |
| Tire | ф15in×5in |
| Gross | 7300lb |
