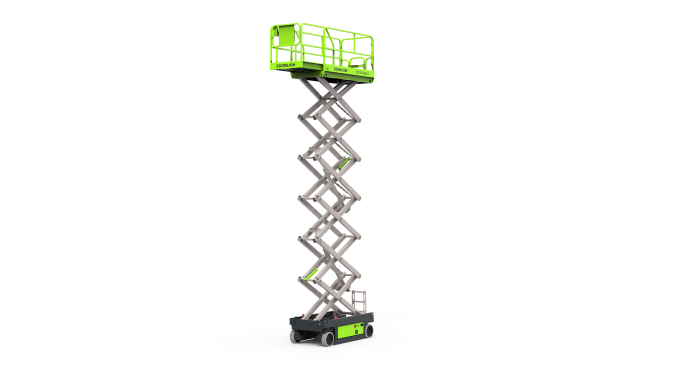

ZS1012HA-Li
| Work Height | 11.80m |
|---|---|
| A – Platform Height-Elevated | 9.80m |
| B – Platform Height-Stowed | 1.39m |
| C – Platform Length | 2.30m |
| D – Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E Overall Height (Rails Up) | 2.53m |
| Overall Height (Rails Down) | 1.86m |
| F Overall Length | 2.49m |
| G Overall Width | 1.15m |
| H Wheelbase | 1.85m |
| I Ground Clearance (Stowed) | 0.11m |
| J Ground Clearance (Raised) | 0.02m |
| Platform Capacity | 350kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | Indoor: 2 Outdoor: 1 |
| Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 2.2m |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | – |
| Up/Down Time | 60s/35s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ф381mm×127mm |
| Battery | 230Ah Li-ion |
| Charger | 24V/30A |
| Charger (Option) | 24V/60A |
| Gross | 2900kg |
| Work Height | 38ft 9in |
| A – Platform Height-Elevated | 32ft 2in |
| B – Platform Height-Stowed | 4ft 7in |
| C – Platform Length | 7ft 7in |
| D – Platform Width | 3ft 8in |
| Platform Extension | 3ft |
| E Overall Height (Rails Up) | 8ft 4in |
| Overall Height (Rails Down) | 6ft 1in |
| F Overall Length | 8ft 2in |
| G Overall Width | 3ft 9in |
| H Wheelbase | 6ft 1in |
| I Ground Clearance (Stowed) | 4.5in |
| J Ground Clearance (Raised) | 0.75in |
| Platform Capacity | 770lb |
| Capacity on Deck Extension | 250lb |
| Drive Speed (Stowed) | 2.2mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 4in |
| Turning Radius (Outside) | 7ft 3in |
| Tire | ф15in×5in |
| Gross | 6395lb |
