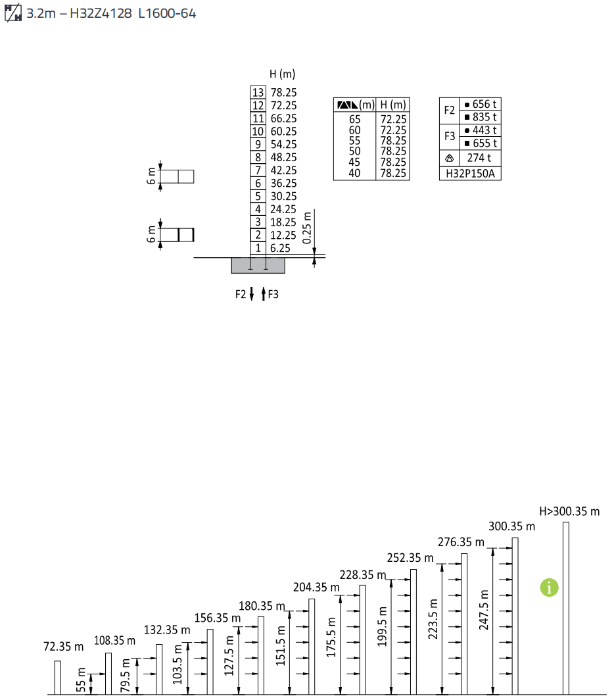

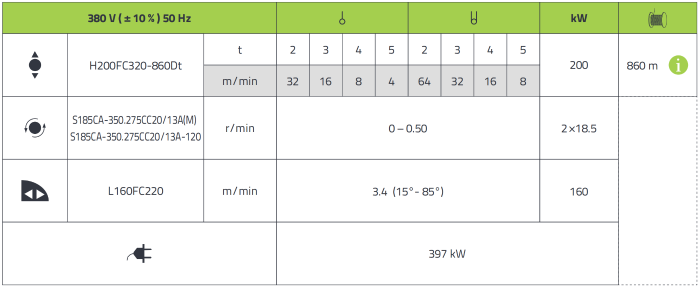

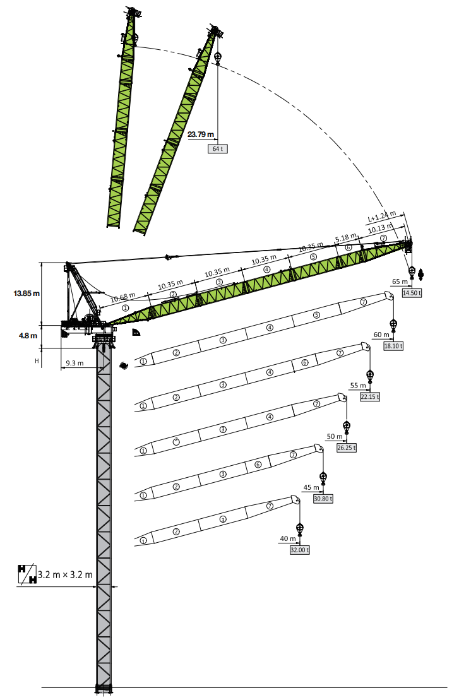

L1600-64

Category Unit Ⅰ Falls Ⅱ Falls Max. hoisting capacity t 16 32 Max. hoisting capacity at jib end (60m) t 6.3 5.93 Max. free standing height m 51.65 Jib length m 30~60 Hoisting speed t 16 8 4 32 16 8 m/min 42 84 105 21 42 53 Slewing speed r/min 0~0.78 Luffing time min 2.9 free…

Category Unit Ⅰ Falls Ⅱ Falls Max. hoisting capacity t 12.5 25 Max. hoisting capacity at jib end (60m) t 4.71 4.6 Max. free standing height m 51.65 Jib length m 30~60 Hoisting speed t 12.5 6.25 3 25 12.5 6 m/min 53 106 132 26.5 53 66 Slewing speed r/min 0~0.72 Luffing time min 3 free…

Category Unit Ⅱ Falls Ⅲ Falls Ⅳ Falls Max. hoisting capacity t 6 9 12 Max. hoisting capacity at jib end (55m) t 2.2 2.13 2.06 Max. free standing height m 57.15 Jib length m 30~55 Hoisting speed t 6 3 1.5 9 4.5 2.25 12 6 3 m/min 44 88 110 29 58 73 22 44 55…

Category Unit Ⅱ Falls Ⅲ Falls Ⅳ Falls Max. hoisting capacity t 5 7.5 10 Max. hoisting capacity at jib end (50m) t 1.5 1.45 1.39 Max. free standing height m 44.2 Jib length m 25~50 Hoisting speed t 5 5 2.5 7.5 7.5 3.75 10 10 5 m/min 28 40 80 18 26.5 53 14 20 40…

Category Unit Ⅱ Falls Ⅲ Falls Ⅳ Falls Max. hoisting capacity t 8 12 16 Max. hoisting capacity at jib end t 3.0 (60m) 4.79 (50m) 4.73 (50m) Max. free standing height m 45.75 Jib length m 30~60 Hoisting speed t 8 4 2 12 6 3 16 8 4 m/min 46 92 120 30 60 80 23…
