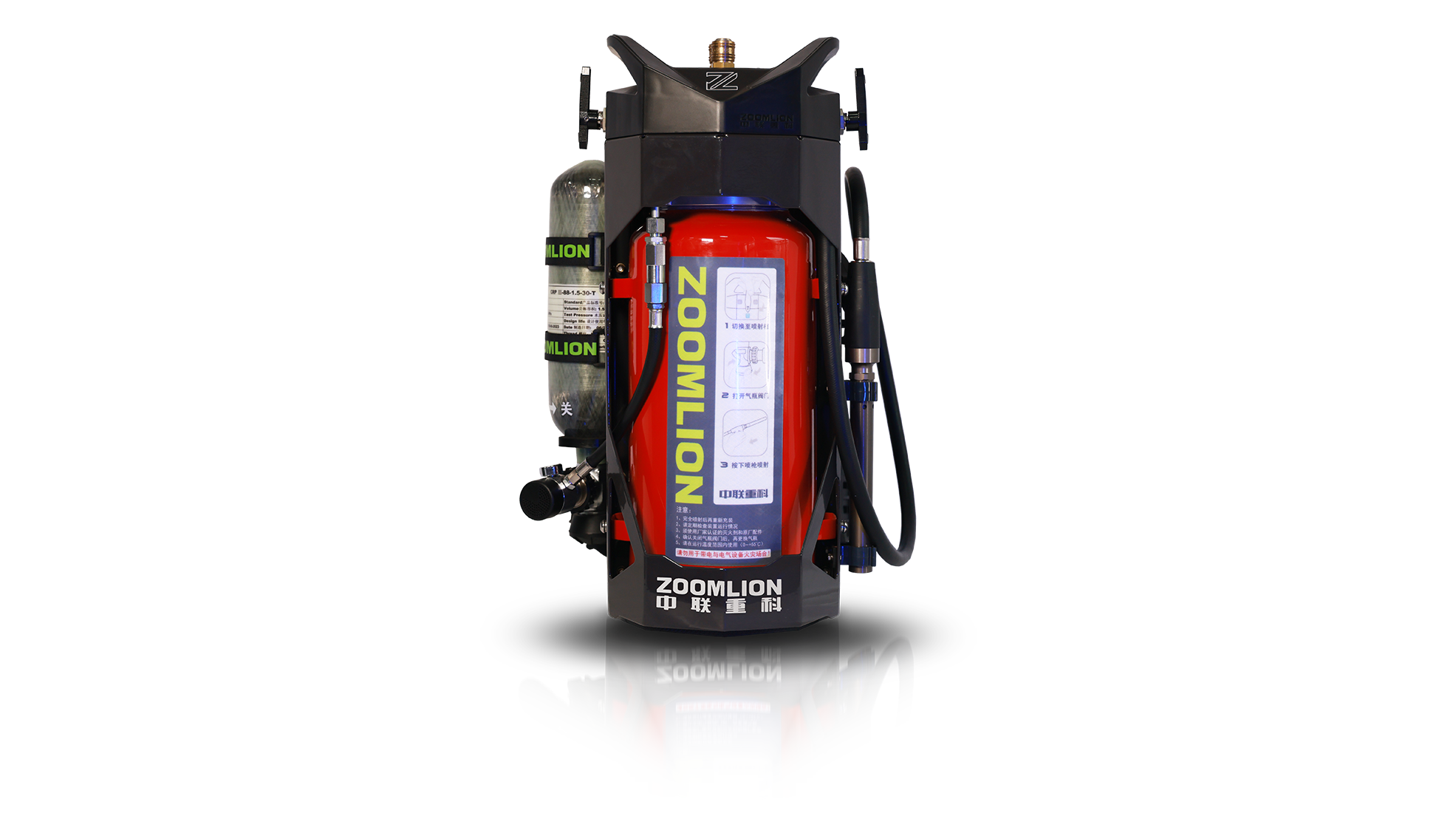

ZL-CAFS-B-10
| Model | ZL-CAFS-B-10 |
|---|---|
| Foam type | Class A Class B |
| Wet foam | Dry foam Wet foam |
| Extinguishant mixing mode | Ready mixed |
| Operating pressure (MPa) | 0.9 |
| Pressure of compressed gas cylinder (MPa) | 30 |
| Volume of compressed gas cylinder (L) | 1.5 |
| Volume of mixed solution (L) | 10 |
| Effective discharge time(s) | Wet foam: about 60s; Dry foam: about 80s |
| Discharge distance (m) | ≥ 10 |
| Foam ratio | ≥ 5 |
| 25% liquid separation time(min) | ≥ 3.5 |
| Total weight of whole machine (kg) | ≤27Kg (maximum filling) |
| Overall dimensions (L * W * H) | ≤ 380 × 300 × 620mm |
