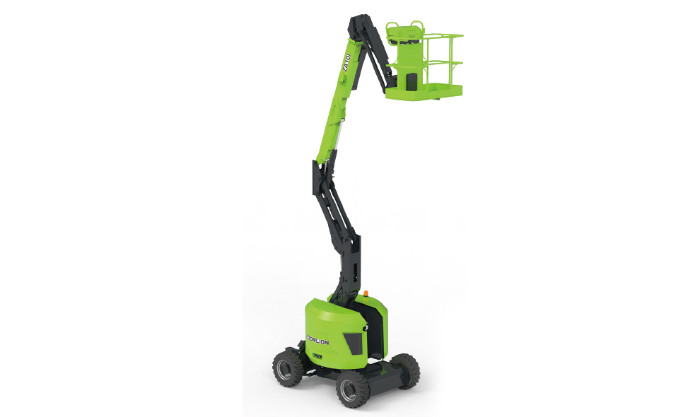

ZA10J

Work Height 34.04m Platform Height 32.04m Horizontal Outreach 21.15m Up and Over Height 14.47m A – Stowed Length 12.75m B – Stowed Width 2.49m C – Stowed Height 2.89m D – Platform Length 2.44m E – Platform Width 0.91m F – Wheelbase 3.81m G – Ground Clearance 0.42m Platform Capacity 250kg Drive Speed 5.2km/h Gradeability…

Work Height 21.38m Platform Height 19.38m Horizontal Outreach 12.3m Up and Over Height 8.25m A – Stowed Length 8.82m B – Stowed Width 2.46m C – Stowed Height 2.52m D – Platform Length 2.44/1.83m E – Platform Width 0.91/0.76m F – Wheelbase 2.52m G – Ground Clearance 0.42m Platform Capacity 250kg/360kg Drive Speed 6.1km/h Gradeability…

Work Height 28.2m Platform Height 26.2m Horizontal Outreach 19.4m Up and Over Height 9.48m A – Stowed Length 11.75m B – Stowed Width 2.49m C – Stowed Height 2.82m D – Platform Length 2.44m E – Platform Width 0.91m F – Wheelbase 3.05m G – Ground Clearance 0.42m Platform Capacity 250kg Drive Speed 5.0km/h Gradeability…

Work Height 15.80m Platform Height 13.80m Horizontal Outreach 8.30m Up and Over Height 7.55m A – Stowed Length 6.57m B – Stowed Width 2.30m C – Stowed Height 2.27m D – Platform Length 1.83m E – Platform Width 0.76m F – Wheelbase 2.36m G – Ground Clearance 0.42m Platform Capacity 300kg Drive Speed 6.8km/h Gradeability…

Work Height 26.23m Platform Height 24.23m Horizontal Outreach 18.9m Up and Over Height 9.29m A – Stowed Length 11.27m B – Stowed Width 2.49m C – Stowed Height 2.82m D – Platform Length 2.44m E – Platform Width 0.91m F – Wheelbase 3.05m G – Ground Clearance 0.42m Platform Capacity 250kg Drive Speed 5.0km/h Gradeability…

Work Height 18m Platform Height 16m Horizontal Outreach 9.97m Up and Over Height 8m A – Stowed Length 7.95m B – Stowed Width 2.27m C – Stowed Height 2.23m D – Platform Length 1.83m E – Platform Width 0.76m F – Wheelbase 2.36m G – Ground Clearance 0.42m Platform Capacity 250kg/360kg Drive Speed 6km/h Gradeability…
