WA5610-6

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 10 20 Max. hoisting capacity at jib end (80m) t 2.5 1.74 Max. free standing height m 64.3 Jib length m 30~80 Hoisting speed t 2.5 10 5 20 m/min 95 38 47.5 19 Slewing speed r/min 0~0.8 Trolley speed m/min 0~88 free standing height 64.3m Radius…

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 10 20 Max. hoisting capacity at jib end (75m) t 3 2.27 Max. free standing height m 70 Jib length m 30~75 Hoisting speed t 2.5 10 5 20 m/min 95 38 47.5 19 Slewing speed r/min 0~0.8 Trolley speed m/min 0~88 free standing height 70m Radius…

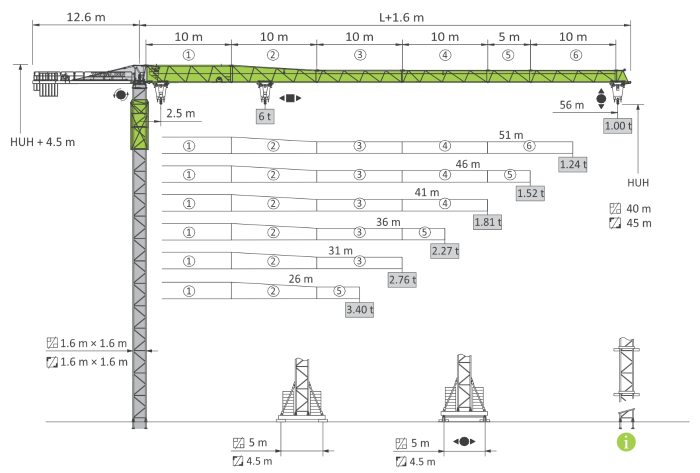

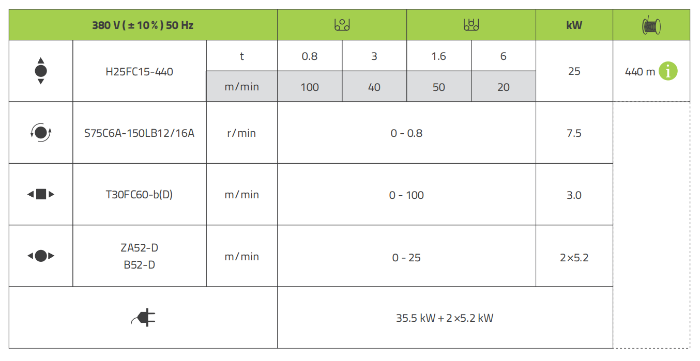

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 3 6 Max. hoisting capacity at jib end (50m) t 1.5 1.45 Max. free standing height m 44.2 Jib length m 20~50 Hoisting speed t 0.63 2.5 1.25 5 m/min 100 40 50 20 Slewing speed r/min 0~0.8 Trolley speed m/min 0~100 Travelling speed m/min 0~25…

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 2.5 5 Max. hoisting capacity at jib end (50m) t 1.5 1.45 Max. free standing height m 44.2 Jib length m 20~50 Hoisting speed t 0.63 2.5 1.25 5 m/min 100 40 50 20 Slewing speed r/min 0~0.8 Trolley speed m/min 0~100 Travelling speed m/min 0~25…
