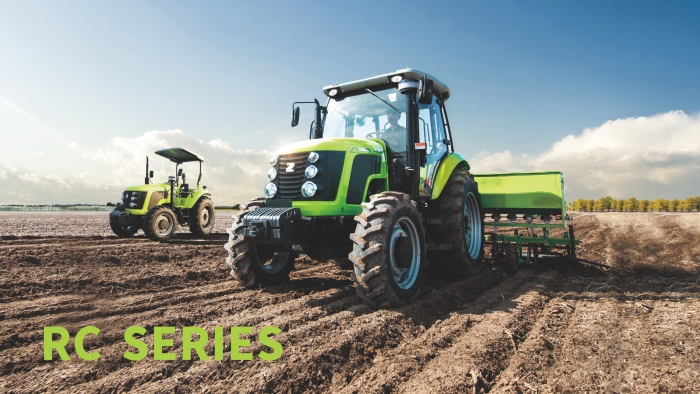

RC1104
| Model | RC1104 |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / Luochai LR4M3Z-24 |
| Engine type | / 4-cylinder, vertical, inline, water-cooled, four-stroke engine |
| Torque reserve | % 20%~25% |
| Fuel tank capacity | L 150 |
| Transmission type | / Synchronizer sleeve gear shifting |
| Gear configuration | / 16F+8R |
| Speed range | km/h 33.69(km/h)/35.58(km/h) |
| Min. turning radius | m 5±0.3 |
| Hydraulic flow rate | L/min 50 |
| Remote hydraulic valves (sets) | set 2 |
| Hitch type and category | / Rear-mounted three-point hitch, category 2 |
| Hitch lift capacity max. 610 mm behind | kN 25 |
| PTO speed options | r/min 540/1000 |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 4400 |
| L × W × H | mm 4530×2050×2930 |
| Wheel base | mm 2195 |
| Wheel track (front/rear) | mm 1590/1610 |
| Min. ground clearance | mm 430 |
| Tire (front/rear) | Standard configuration 12.4-24/16.9-34 |
