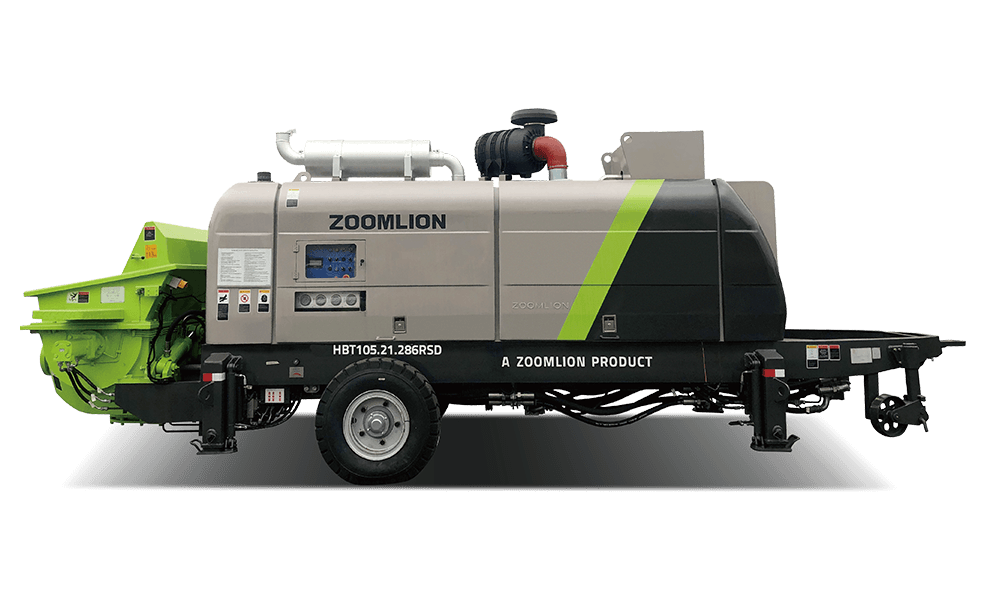

| Maximum theorical output | 105/65m3/h |
|---|---|
| Maximum theorical pressure on concrete | 130/210bar |
| Strokes/minute | 26/16Min -1 |
| Concrete cylinder（diameter×stroke） | Φ200mm×1800mm |
| Hopper capacity | 800L |
| Filling height | 1400mm |
| Maximum aggregate diameter | 50/Φ150mm |
| Inside diameter of delivering pipe | 40/Φ125mm |
| Inside diameter of pipe | Φ125/Φ150mm |
| Hydraulic system type | Closed |
| Power | 286/273kW |
| Length×width×height | 7200mmx2250mmx2940mm |
| Weight | 9700kg |
Maximum theorical output 81/49m3/h Maximum theorical pressure on concrete 90/160bar Strokes/minute 23/14Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 600L Filling height 1450mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 199kW Length×width×height 6800mmx2200mmx2700mm Weight 7540kg
Max. theo.concrete output(L./H.) 67/41m³/h Max. concrete pumping pressure (H./L.) 130/70bar Pump cylinder bore x stroke Φ125×1710 Concrete cylinder diameter x stroke Φ200×1710 Hopper volume x loading height 600×1430L×mm Distribution valve form S-tube valve Hydraulic system type Open Outlet diameter Φ180mm Engine model WP4.1NG160E300 Rated engine power/speed 118/2300kW/(r/min) Emission standard Non-road China 3 Inside diameter of…
Maximum theorical output 72/44m3/h Maximum theorical pressure on concrete 90/160bar Strokes/minute 21.2/12.8Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 600L Filling height 1450mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 110kW Length×width×height 7000mm×2200mm×2300mm Weight 7390kg
Maximum theorical output 67/41m3/h Maximum theorical pressure on concrete 70/130bar Strokes/minute 19.8/12Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 600L Filling height 1450mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 90kW Length×width×height 7000mm×2200mm×2300mm Weight 6950kg
Max. theo.concrete output(L./H.) 49/26m³/h Max. concrete pumping pressure (H./L.) 100/50bar Pump cylinder bore x stroke Φ100×1250mm Concrete cylinder diameter x stroke Φ180×1250mm Hopper volume x loading height 500×1400L×mm Distribution valve form S-tube valve Hydraulic system type Open Outlet diameter Φ180mm Engine model 4BTA3.9-C80 Rated engine power/speed 60/2200kW/(r/min) Emission standard Non-road China 3 Inside diameter of…
Maximum theorical output 112/73m3/h Maximum theorical pressure on concrete 160/260bar Strokes/minute 26.5/16.6Min -1 Concrete cylinder（diameter×stroke） Φ200mm×2100mm Hopper capacity 800L Filling height 1410mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 2×186kW Length×width×height 7700mm×2430mm×2800mm Weight 13000kg
