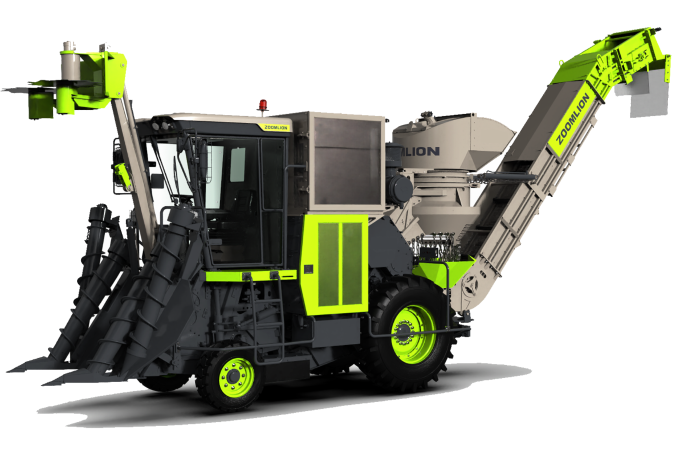

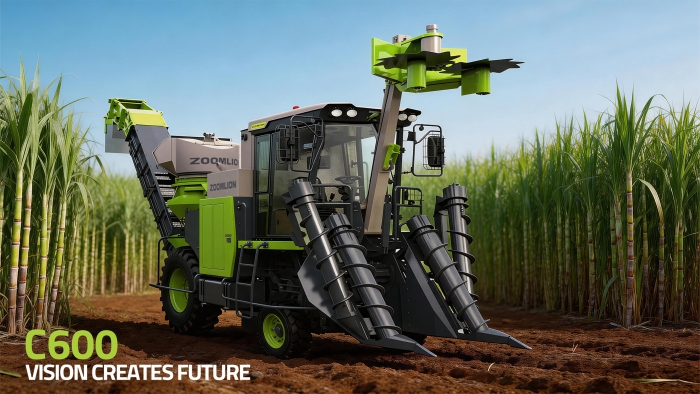

C600
| Title | Zoomlion Sugarcane Harvester C600 |
|---|---|
| Model | C600 |
| Product Name | Wheeled sugarcane harvester |
| Overall Dimensions | 10350 × 2320 × 5408 mm (L × W × H) |
| Wheel base/Track gauge | 2425mm |
| Turning radius | 6m |
| Operating weight | 9.56t |
| Max. travel speed | 18km/h |
| Max. gradeability | 20% |
| Fuel tank capacity | 280L |
| Hydraulic tank capacity | 180L |
| Row spacing | ≥ 1.2m |
| Max. harvesting capacity | ≥ 25t/h |
| Model | Cummins National III, 5.9 L, 6-cylinder engine |
| Rated power @ 2100rpm | 154kW, 210hp |
| Crop divider type | Boat-type divider |
| Divider tip spacing | 1100mm |
| Topper height range | Standard: 890–3000 mm Optional: height extender (+500 mm) |
| Elevator discharge height | 4000mm |
| Elevator swing angle | ±85° |
| Operator control system | Full electro-hydraulic control system with multi-function joystick integrating harvesting and travel functions |
| Air Conditioning | A/C (cooling only) |
| Remote telematics | Standard |
| Video monitoring system | Standard harvesting video monitoring + rearview camera |
