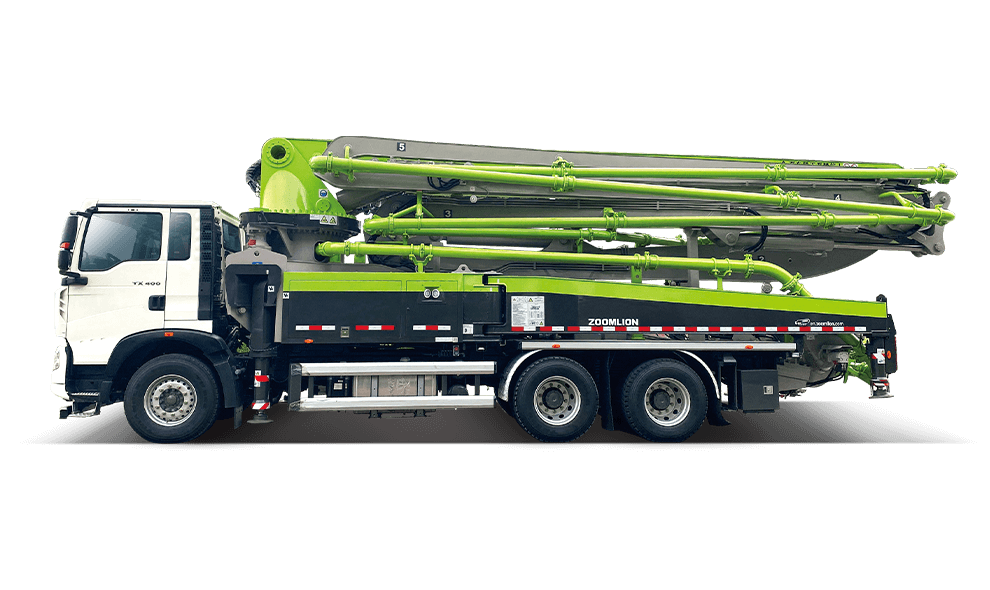

| Reach height | 47.00m |
|---|---|
| Horizontal reach ( gross/net ) | 42.70/39.90m |
| Reach depth | 32.60m |
| Unfolding height | 9.70m |
| Sections | 5 |
| Folding system | RZ |
| End hose length | 3m |
| Delivery line | DN125mm |
| Max. output | 180/120m³/h |
| Max. pressure | 93/120bar |
| Delivery cylinder | Φ260mm |
| Stroke | 2100mm |
Reach height 62.20m Horizontal reach ( gross/net ) 57.00m Reach depth 45.80m Unfolding height 15.83m Sections 7 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 180m³/h Max. pressure 113bar Delivery cylinder Φ260mm Stroke 2100mm
Reach height 37.10m Horizontal reach ( gross/net ) 32.36/29.49m Reach depth 25.20m Unfolding height 7.90m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 170m³/h Max. pressure 88bar Delivery cylinder Φ260mm Stroke 2100mm
Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180/120m3/h Maximum theorical pressure on concrete 83/120bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Open Chassis brand Multiple Choices
Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180m3/h Maximum theorical pressure on concrete 113bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Closed Chassis brand Multiple Choices
Reach height 39.50m Horizontal reach ( gross/net ) 35.15/31.50m Reach depth 23.15m Unfolding height 8.13m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 160/100m³/h Max. pressure 70/100bar Delivery cylinder Φ230 Stroke 2100mm
Reach height 23.20m Horizontal reach ( gross/net ) 19.70m/17.00m Reach depth 13.80m Unfolding height 4.76m Sections 4 Folding system Z End hose length 3m Delivery line DN125mm Max. output 100/60m³/h Max. pressure 60/100bar Delivery cylinder Φ230mm Stroke 1650mm
