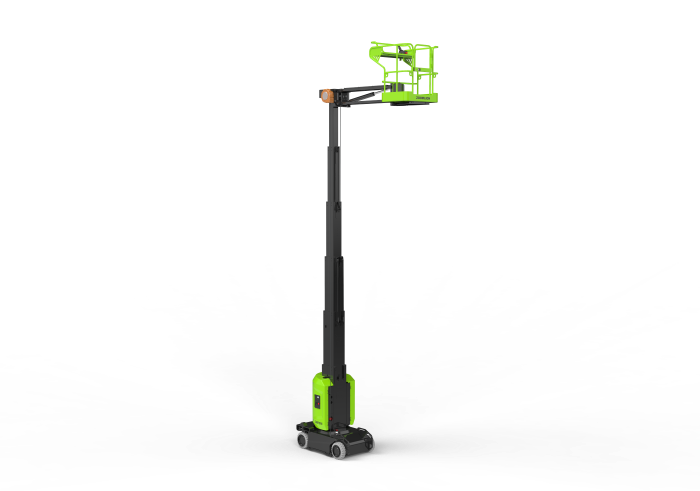

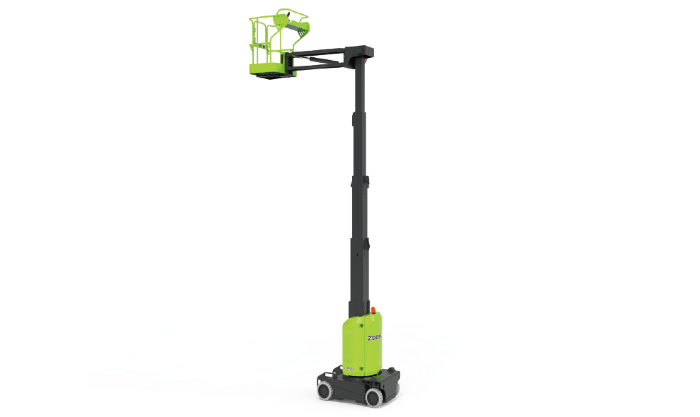

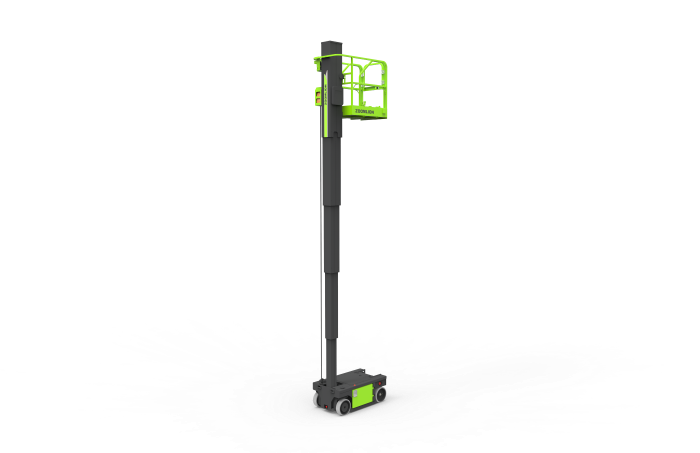

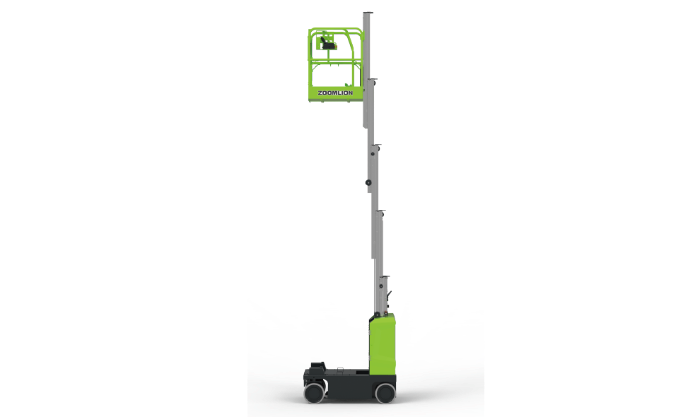

ZMP04

Work height 11.2m&& Platform Height-elevated 9.2m&& Platform horizontal outreach 3.23m&& A-Platform Height-Elevated 7.75m&& B-Platform Height-Stowed 2.7m&& C-Platform Length 1.99m&& D-Platform Width 0.76m&& F-Overall Length 1.2m&& G-Overall Width 0.065m&& E-Overall Height 0.99m&& H-Wheelbase 0.015m&& Platform capacity 200kg&& Max .Number of workers(indoor/outdoor) 2/1&& Drive speed(stowed) 4.5km/h&& Drive speed(raised) 0.5km/h&& Turning radius(inside) 0.2m&& Turning radius(outside) 1.61m&& Lifting motor…

Work height 11.2m&& Platform Height-elevated 9.2m&& Platform horizontal outreach 3.23m&& A-Platform Height-Elevated 7.75m&& B-Platform Height-Stowed 2.7m&& C-Platform Length 0.76m&& G-Overall Width 1.2m&& E-Overall Height 1.99m&& H-Wheelbase 0.065m&&

Work height 11.2m&& Platform Height-elevated 9.2m&& Platform horizontal outreach 3.23m&& A-Platform Height-Elevated 7.75m&& B-Platform Height-Stowed 2.7m&& C-Platform Length 0.76m&& G-Overall Width 1.2m&& E-Overall Height 1.99m&& H-Wheelbase 0.065m&&

Work height 7.91m&& Platform Height-elevated 9.2m&& Platform horizontal outreach 3.23m&& A-Platform Height-Elevated 5.91mm&& B-Platform Height-Stowed 0.74m&& C-Platform Length 1.02m&& D-Platform Width 0.76m&& F-Overall Length 1.39m&& G-Overall Width 0.78m&& K-Platform Extension 0.5m&& E-Overall Height 1.99m&& H-Wheelbase 1.06m&& I-Ground Clearance(Stowed) 0.065m&& J-Ground Clearance(Raised) 0.017m&& Platform capacity 200kg&& Max .Number of workers(indoor/outdoor) 1/0&& Capacity on Deck Extension 113kg&&…
