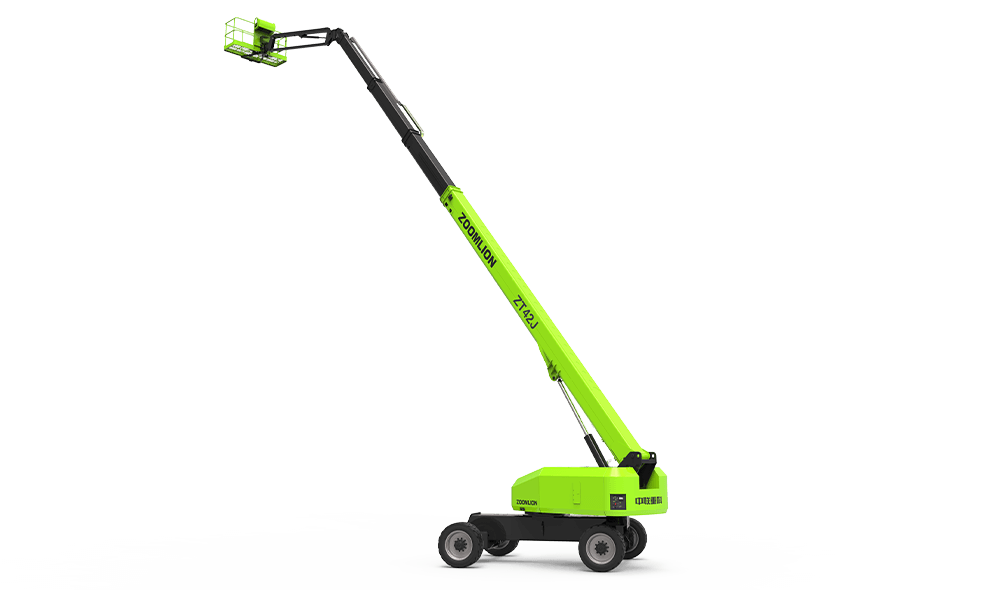

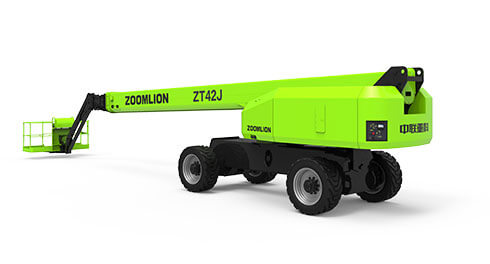

ZT42J
| Work Height | 44m |
|---|---|
| Platform Height | 42m |
| Horizontal Outreach | 25m |
| A – Stowed Length | 14.95m |
| B – Stowed Width | 2.49m |
| C – Stowed Height | 2.86m |
| D – Platform Length | 2.44m |
| E – Platform Width | 0.91m |
| F – Wheelbase | 3.81m |
| Tread | 2.46/4.07m |
| G – Ground Clearance | 0.4m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 5km/h |
| Gradeability | 45%(24°） |
| Turning Radius (Inside) | 2.5m8ft |
| Turning Radius (Outside) | 5.65m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 1.67m |
| Jib (Range of Articulation) | 130°（﹣55°~75°） |
| Max. Wind Speed | 12.5m/s |
| Engine | KUBOTA V2607 (StageV)/KUBOTA V3307(Stage III) |
| Fuel Tank Capacity | 200L |
| Control Voltage | 12V DC |
| Hydraulic Tank Capacity | 250L |
| Drive Mode | 4WD |
| Steering Mode | Four wheels/Front wheel/Crab |
| Type | IN445/50 D710 Foam-filled Tires |
| Gross | 22050kg |
| Work Height | 144ft 4in |
| Platform Height | 125ft |
| Horizontal Outreach | 82ft |
| A – Stowed Length | 49ft 1in |
| B – Stowed Width | 8ft 1in |
| C – Stowed Height | 9ft 5in |
| D – Platform Length | 8ft |
| E – Platform Width | 3ft |
| F – Wheelbase | 12ft 6in |
| Tread | 8ft 1in/13ft 4in |
| G – Ground Clearance | 1ft 4in |
| Platform Capacity (Unrestricted/Restricted) | 660/1000lb |
| Drive Speed (Stowed) | 3.1mph |
| Turning Radius (Inside) | 2in |
| Turning Radius (Outside) | 18ft 6in |
| Tail Swing | 5ft 6in |
| Max. Wind Speed | 28mph |
| Fuel Tank Capacity | 52.8 (us gal) |
| Hydraulic Tank Capacity | 66 (us gal) |
| Gross | 48612lb |
