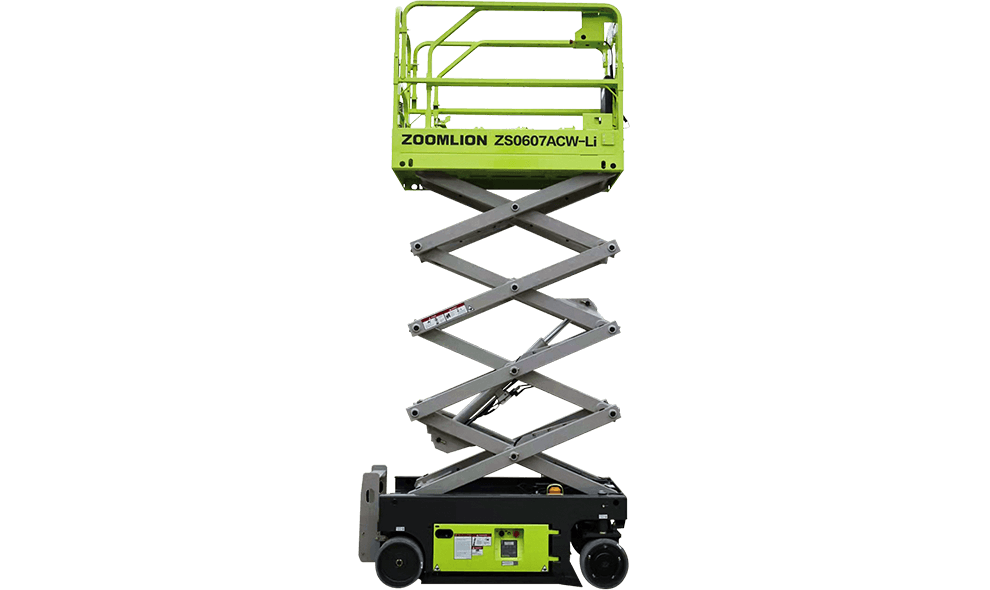

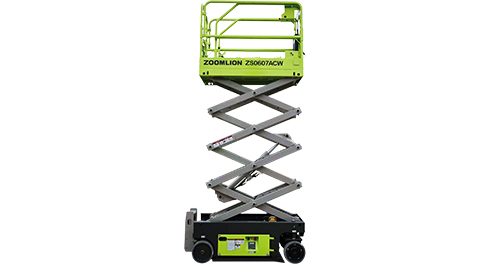

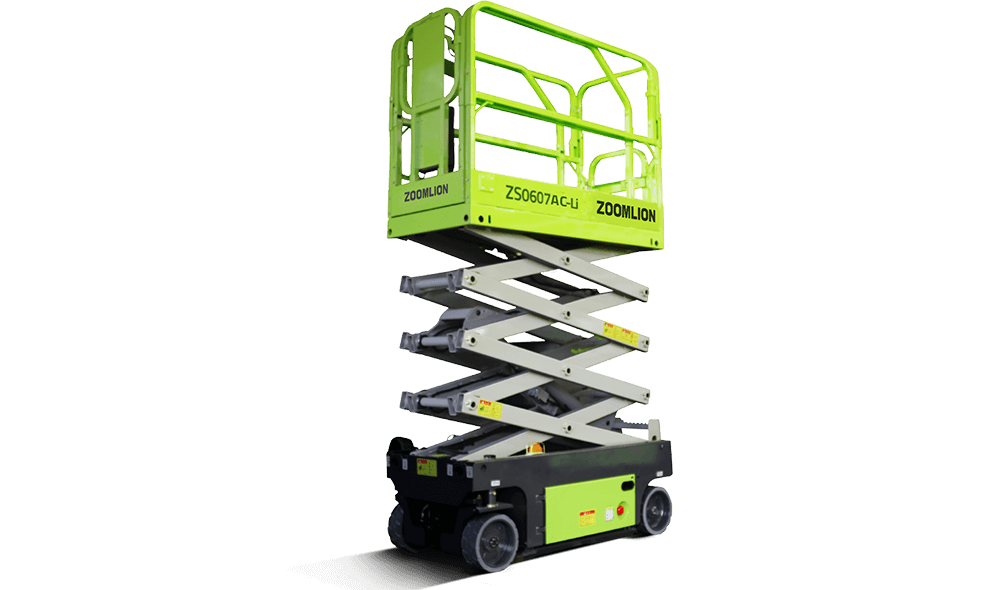

ZS0607ACW
| Work Height | 7.8m |
|---|---|
| A – Platform Height-Elevated | 5.8m |
| B – Platform Height-Stowed | 1.05m |
| C – Platform Length | 1.65m |
| D – Platform Width | 0.74m |
| Platform Extension | 0.91m |
| E – Overall Height (Rails Up) | 2.20m |
| Overall Height (Rails Down) | 1.79m |
| F – Overall Length | 1.85m |
| G – Overall Width | 0.81m |
| H – Wheelbase | 1.37m |
| I – Ground Clearance (Stowed) | 0.06m |
| J – Ground Clearance (Raised) | 0.016m |
| Platform Capacity | 230kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | 2/1 |
| Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 1.6m |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | 24/0.65KW |
| Up/Down Time | 20s/24s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ф323mm×100mm |
| Battery | 4×12V/160Ah |
| Charger | 24V/30A |
| Charger (Option) | – |
| Gross | 1620kg |
| Work Height | 25ft 7in |
| A – Platform Height-Elevated | 19ft |
| B – Platform Height-Stowed | 3ft 5in |
| C – Platform Length | 5ft 5in |
| D – Platform Width | 2ft 5in |
| Platform Extension | 3ft |
| E – Overall Height (Rails Up) | 7ft 3in |
| Overall Height (Rails Down) | 5ft 10in |
| F – Overall Length | 6ft 1in |
| G – Overall Width | 2ft 8in |
| H – Wheelbase | 4ft 6in |
| I – Ground Clearance (Stowed) | 2.4in |
| J – Ground Clearance (Raised) | 0.65in |
| Platform Capacity | 510lb |
| Capacity on Deck Extension | 250lb |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 4in |
| Turning Radius (Outside) | 5ft 3in |
| Tire | ф13in×4in |
| Gross | 3570lb |
