R500-25

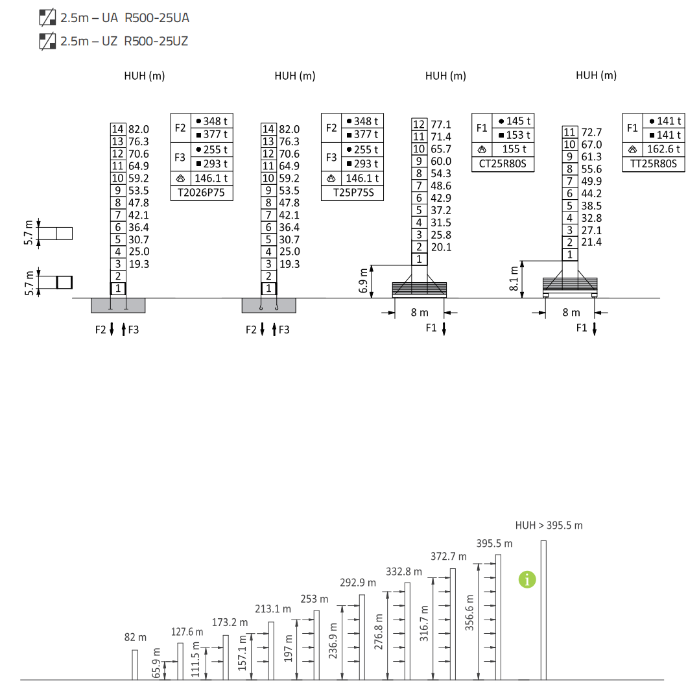

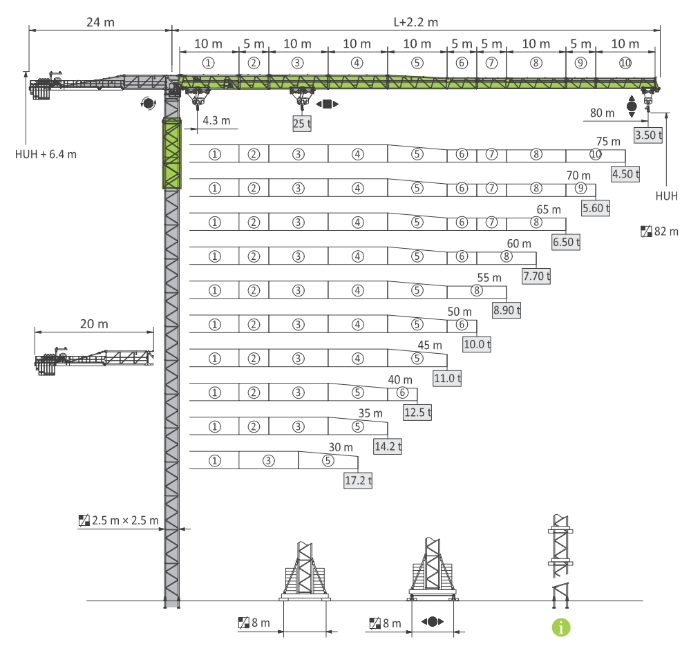

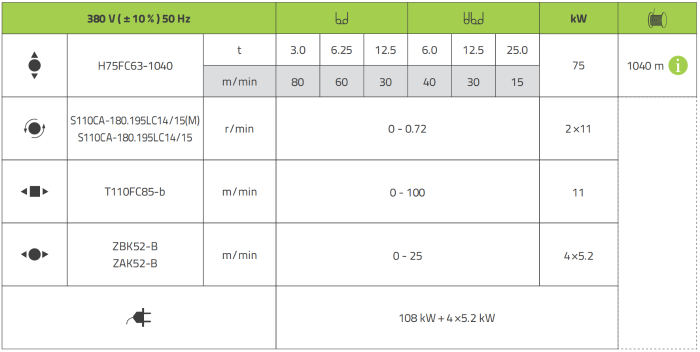

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 10 20 Max. hoisting capacity at jib end (75m) t 3 2.27 Max. free standing height m 70 Jib length m 30~75 Hoisting speed t 2.5 10 5 20 m/min 95 38 47.5 19 Slewing speed r/min 0~0.8 Trolley speed m/min 0~88 free standing height 70m Radius…
