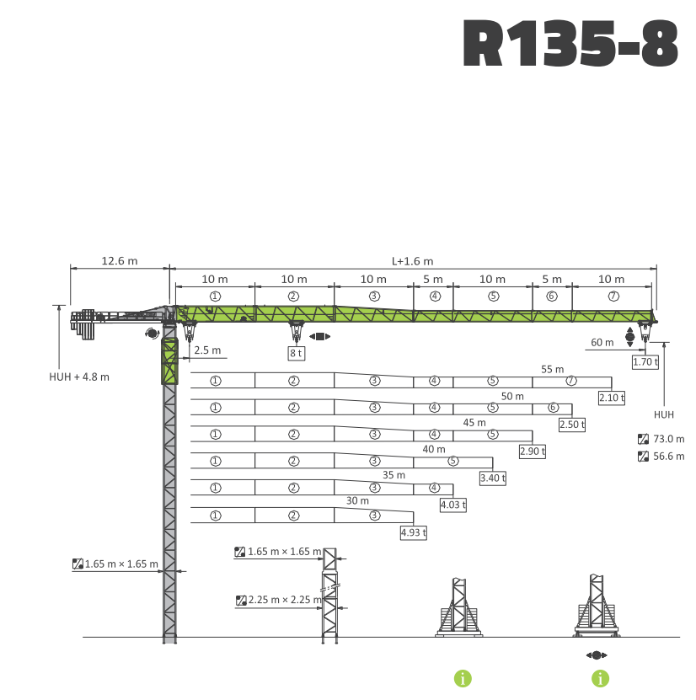

R135-8

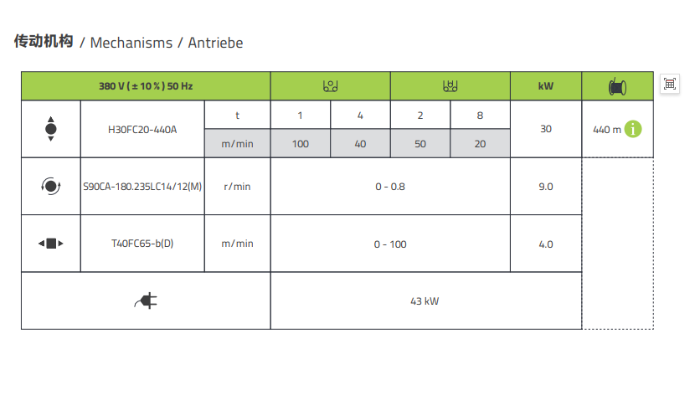

Category Unit Ⅱ Falls Ⅳ Falls Max. hoisting capacity t 8 16 Max. hoisting capacity at jib end (80m) t 2.5 1.74 Max. free standing height m 64.3 Jib length m 30~80 Hoisting speed t 2 8 4 16 m/min 90 36 45 18 Slewing speed r/min 0~0.8 Trolley speed m/min 0~88 free standing height 64.3m Radius 80m…
