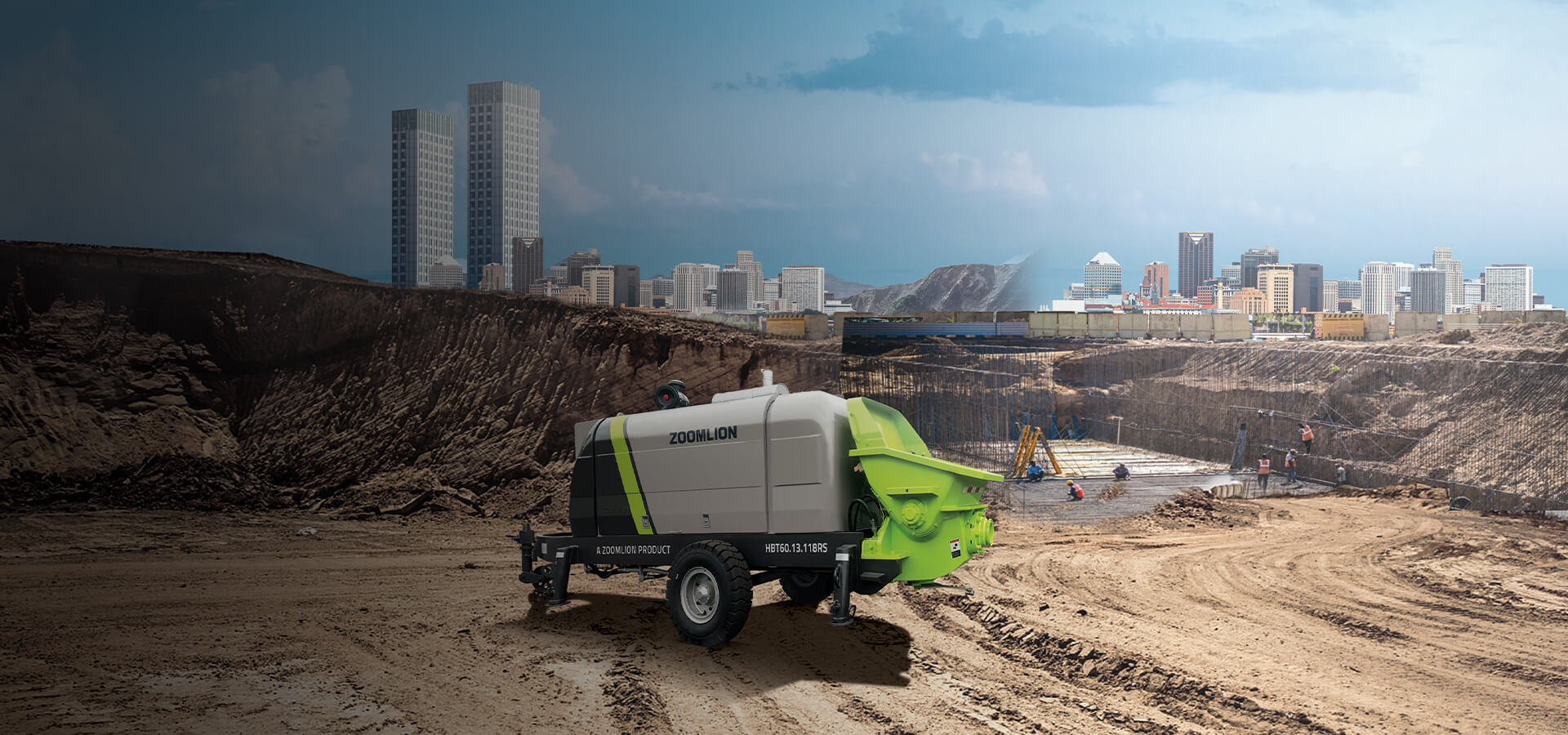

HBT60.16.110SU

Max. theo.concrete output(L./H.) 49/26m³/h Max. concrete pumping pressure (H./L.) 100/50bar Pump cylinder bore x stroke Φ100×1250mm Concrete cylinder diameter x stroke Φ180×1250mm Hopper volume x loading height 500×1400L×mm Distribution valve form S-tube valve Hydraulic system type Open Outlet diameter Φ180mm Engine model 4BTA3.9-C80 Rated engine power/speed 60/2200kW/(r/min) Emission standard Non-road China 3 Inside diameter of…

Maximum theorical output 105/65m3/h Maximum theorical pressure on concrete 130/210bar Strokes/minute 26/16Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 800L Filling height 1400mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Closed Power 286/273kW Length×width×height 7200mmx2250mmx2940mm Weight 9700kg

Maximum theorical output 112/73m3/h Maximum theorical pressure on concrete 160/260bar Strokes/minute 26.5/16.6Min -1 Concrete cylinder（diameter×stroke） Φ200mm×2100mm Hopper capacity 800L Filling height 1410mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 2×186kW Length×width×height 7700mm×2430mm×2800mm Weight 13000kg

Maximum theorical output 81/49m3/h Maximum theorical pressure on concrete 90/160bar Strokes/minute 23/14Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 600L Filling height 1450mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 174kW Length×width×height 7200mmx2200mmx2700mm Weight 7540kg

Maximum theorical output 67/41m3/h Maximum theorical pressure on concrete 70/130bar Strokes/minute 21/13Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1710mm Hopper capacity 600L Filling height 1400mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 118kW Length×width×height 6700mmx2100mmx2700mm Weight 6500kg

Maximum theorical output 93/54m3/h Maximum theorical pressure on concrete 100/180bar Strokes/minute 27.3/15.8Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 600L Filling height 1450mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 186/199kW Length×width×height 7200mmx2200mmx2750mm Weight 7900kg
